Home > eSalesTrack Help Menu > Administrator > Modules > Form Manager > Layouts > Multi-page Layouts > Linear Layout

Multi-page Layouts

Linear Layout

A linear layout is a great way to conditionally show fields based on values of other fields on the page. This set up can be used

To create a linear layout:

1. Open the form manager for the module you would like to create a linear layout for.

2. Under the layout section click on "New Multi-page Layout".

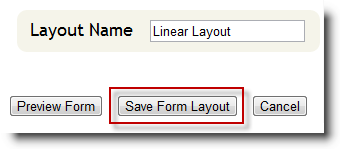

3. Give the layout a name, save, and then refresh the screen.

4. Select the option "Linear Layout" in the layout section.

5. You can now add pages by clicking "New Page". A page represents a field or group of fields that you can have conditionally show on the layout.

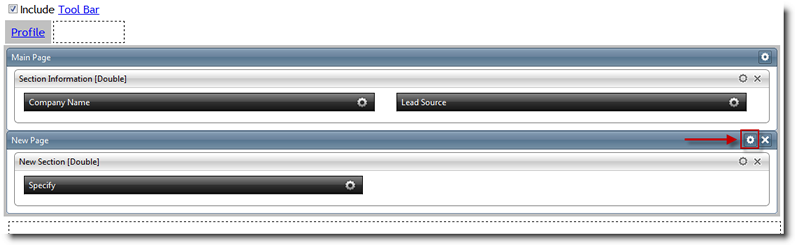

6. You will need to create a filter on the page to designate when you would like to have it show up. To add a filter to a page click the edit page link in the corner of the page. You cannot add filters to the main page.

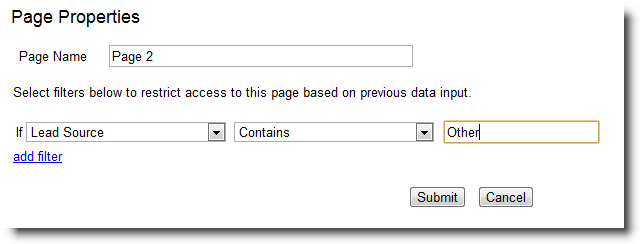

7. From the page properties window select the field you would like to filter by, select the type of filter, and then type in filter criteria. The page will only show when records meet this filter criteria.

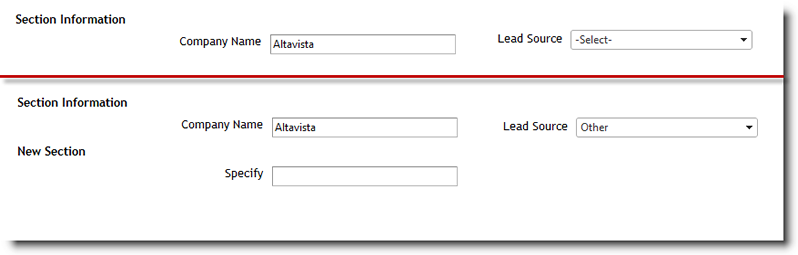

8. The page will only appear when the filter criteria is met.
